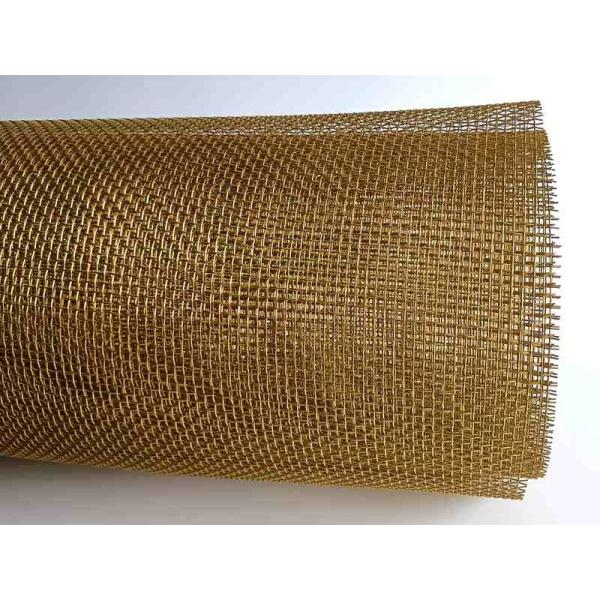

Square Hole Plain Woven Copper Wire Mesh Cloth 30m/Roll Wear Resistant

Product Categories
Anping Jiufu Metal Wire Mesh Co.,Ltd
Contact Now

Square Hole Plain Woven Copper Wire Mesh Cloth 30m/Roll Wear Resistant

  • 1
  • 2

Brand Name : Jiufu

Model Number : CP-1

Certification : IS0

Place of Origin : Hengshui,Hebei,China

MOQ : 30 Square Meters

Price : Negotiable

Payment Terms : Western Union, T/T, MoneyGram

Supply Ability : 5000 roll /month

Delivery Time : 15-20 days and also Mainly Depend Quantity

Packaging Details : Carton or Wood Carton

Product Name : Brass Wire Mesh

Color : Golden

Materials : 65% copper, 35% zinc

Woven Style : Woven

Hole shape : Square Hole

Width : Usually1M

Length : 30m/roll 50m/roll or as required

Application : Filter Printing and Seperation

Contact Now

Square Hole Plain Woven Copper Wire Mesh Cloth 30m/Roll Wear Resistant

Brass Wire Mesh Introduction:

Material: brass wire.(65% copper, 35% zinc)
Features: non-magnetic, wear-resistant, good ductility
Specifications: 3 mesh/inch - 200 mesh/inch
Weave: plain weave, twill weave
Uses: particles and powders filter screen ,the printing of porcelain clay, glass and porcelain printing, liquid and gas filter, etc,

Brass Wire Mesh Specification

Mesh counts: 2-250 mesh

Wire diameter: the thickness of one single wire.

Opening / Aperture / Hole size: the distance between two adjacent parallel wires.

Micron size can also tell us something about the brass mesh. Because it typically refers to the nominal opening size. For example, 250 micron mesh screen possesses 0.25 mm aperture size. 75 micron mesh possesses 0.075 mm aperture size.

mesh/inch Wire Diameter Opening Open Area Weight (kg/m2)
mm inch mm inch
2 2.030 0.800 10.67 0.420 70 4.62
2 1.800 0.072 10.90 0.429 73 3.63
2 1.600 0.063 11.10 0.437 76 2.87
3 1.600 0.063 6.87 0.270 65 4.30
4 1.194 0.047 5.16 0.203 66 3.19
5 0.910 0.035 4.17 0.164 67 2.32
6 0.800 0.032 3.43 0.135 66 2.15
6 0.711 0.028 3.52 0.139 69 1.70
8 0.711 0.028 2.46 0.097 60 2.26
8 0.610 0.024 2.57 0.101 65 1.67
8 0.559 0.022 2.62 0.103 68 1.40
10 0.635 0.025 1.90 0.075 56 2.26
10 0.559 0.022 1.98 0.078 61 1.75
10 0.508 0.020 2.03 0.080 64 1.45
12 0.584 0.023 1.47 0.058 52 2.29
12 0.457 0.018 1.66 0.065 61 1.40
14 0.500 0.020 1.31 0.052 52 1.96
14 0.457 0.018 1.36 0.054 56 1.64
14 0.417 0.016 1.40 0.055 59 1.36
16 0.457 0.018 1.12 0.044 50 1.87
16 0.345 0.014 1.24 0.049 61 1.07
16 0.315 0.012 1.27 0.050 64 0.89
18 0.450 0.018 0.96 0.038 46 2.04
18 0.432 0.017 0.97 0.038 48 1.88
18 0.315 0.012 1.10 0.043 60 1.00
20 0.315 0.012 0.96 0.038 56 1.11
20 0.247 0.011 0.88 0.035 61 0.68
22 0.315 0.012 0.84 0.033 53 1.22
24 0.315 0.012 0.74 0.029 49 1.33
26 0.295 0.012 0.68 0.027 49 1.27
28 0.295 0.012 0.61 0.024 45 1.36
20 0.407 0.016 0.86 0.034 46 1.86
30 0.305 0.012 0.53 0.021 40 1.56
30 0.247 0.011 0.57 0.022 49 1.02
30 0.234 0.009 0.61 0.024 52 0.92
32 0.254 0.010 0.54 0.021 46 1.16
34 0.234 0.009 0.51 0.020 47 1.04
36 0.234 0.009 0.47 0.019 45 1.10
38 0.213 0.008 0.46 0.018 46 0.97
40 0.254 0.010 0.38 0.015 36 1.45
40 0.193 0.008 0.44 0.017 48 0.83
40 0.152 0.006 0.46 0.018 58 0.52
42 0.193 0.008 0.41 0.016 46 0.88
44 0.173 0.007 0.40 0.016 49 0.74
46 0.173 0.007 0.38 0.015 47 0.77
48 0.173 0.007 0.38 0.015 47 0.80
50 0.230 0.009 0.28 0.011 30 1.48
50 0.173 0.007 0.34 0.013 43 0.84
50 0.132 0.005 0.38 0.015 55 0.49
60 * 50 0.193 0.008 - - - 1.02
60 * 50 0.173 0.007 - - - 0.82
60 0.190 0.008 0.23 0.009 30 1.21
60 0.173 0.007 0.25 0.010 35 1.01
60 0.122 0.005 1.30 0.051 83 0.50
70 0.132 0.005 0.23 0.009 40 0.68
70 0.112 0.004 0.25 0.010 48 0.49
80 0.140 0.006 0.18 0.007 31 0.88
80 0.122 0.005 0.20 0.008 38 0.67
80 0.102 0.004 0.22 0.009 46 0.47
90 0.112 0.004 0.17 0.007 36 0.63
90 0.091 0.004 0.19 0.007 46 0.42
100 0.114 0.005 0.14 0.006 30 0.73
100 0.102 0.004 0.15 0.006 36 0.58
100 0.091 0.004 0.16 0.006 41 0.46
120*108 0.091 0.004 - - - 0.47
120 0.081 0.003 0.13 0.005 38 0.44
120 0.071 0.003 0.14 0.006 44 0.34
140 0.071 0.003 0.11 0.004 37 0.40
140 0.061 0.002 0.12 0.005 44 0.29
150 0.061 0.002 0.11 0.004 41 0.31
160 0.061 0.002 0.10 0.004 38 0.33
180 0.061 0.002 0.08 0.003 32 0.38
180 0.051 0.002 0.09 0.004 41 0.26
200 0.051 0.002 0.08 0.003 36 0.29


Brass Wire Mesh Product Details:

Square Hole Plain Woven Copper Wire Mesh Cloth 30m/Roll Wear ResistantSquare Hole Plain Woven Copper Wire Mesh Cloth 30m/Roll Wear ResistantSquare Hole Plain Woven Copper Wire Mesh Cloth 30m/Roll Wear Resistant
